A Kubernetes Deployment Hardening

The purpose of this example is to show that hardening of Kubernetes workloads is no harder (no pun intented) than hardening of regular Docker containers.

The application code is straightforward and the Workflow files are heavily commented.

You can explore its repository, and then clone it and adapt it to your application.

The Github repository includes:

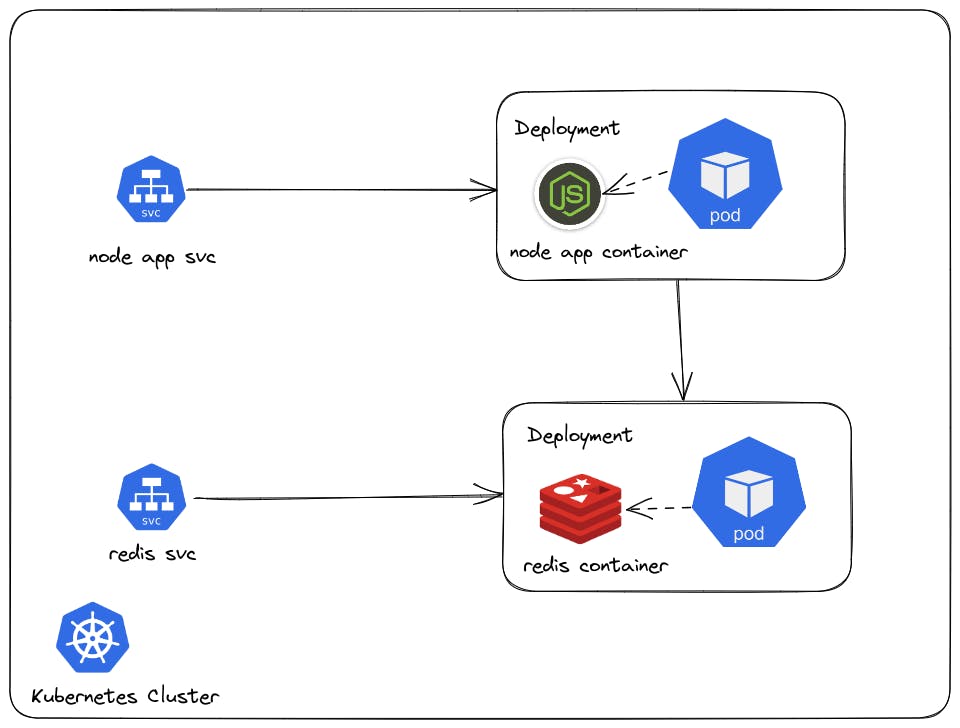

Here is a high-level overview of what our Kubernetes manifests intend to do:

The Problem and the Solution

Creating high-quality container images is no easy task.

How do you choose an optimal base image? How do you configure a multistage build? How do you remove vulnerabilities from your images? One must be a true container expert to get it right.

However, there is another way.

Automated Container Image Hardening from Slim.AI With Slim.AI, you can:

  • Build an image FROM your favorite base.
  • Instrument the image being used in Kubernetes workload with the Slim Sensor.
  • Run tests against the Kubernetes workload using instrumented image to collect intelligence about what it needs to run.
  • Build a hardened version of the image using that intelligence to use in Kubernetes workload

Hardening Kubernetes Workload using the Slim CLI

Prerequisites

To complete this tutorial, you will need:

  • A fresh version of the Slim CLI installed and configured link / docs
  • A container registry connector configured via the Slim SaaS link / docs
  • A Kubernetes cluster and kubectl configured.
$ curl -sLS https://get.arkade.dev | sudo sh

$ ark get kind kubectl
$ sudo ln -s ${HOME}/.arkade/bin/kind /usr/local/bin/
$ sudo ln -s ${HOME}/.arkade/bin/kubectl /usr/local/bin/

# [Optional] Start a Kubernetes cluster
$ kind create cluster

What & How

Before we move to the steps, let's see how the flow can be visualized:

Step 1: Instrument 🕵️

The first step involves instrumenting the image. Simply speaking, this means adding the Slim Sensor to your container so it can act as an intelligence agent to collect data during the Observe step.

$ slim instrument \
  --include-path /service \
  --stop-grace-period 120s \
   ghcr.io/slim-ai/saas-examples-harden-kubernetes-deployment:latest
...
[instrument] target image: ghcr.io/slim-ai/saas-examples-harden-kubernetes-deployment:latest
[instrument] instrumented image: ghcr.io/slim-ai/saas-examples-harden-kubernetes-deployment:latest-slim-instrumented
[instrument] hardened image: ghcr.io/slim-ai/saas-examples-harden-kubernetes-deployment:latest-slim-hardened
...
rknx.2LkF7SjT3M0YbaXAMTjWgGm8zQN  # Instrumentation "attempt ID". Save this: you'll need it later.

NOTE: Make sure the instrumented image, in our case, ghcr.io/slim-ai/saas-examples-harden-kubernetes-deployment:latest is available through the connector.

Step 2: Observe (aka "profile" aka "test") 🔎

Now that we have our agent (aka, the Slim Sensor) in the target container, it is time to implement the mission. That is, to run a workload (Deployment in this case) using the instrumented image. Make sure you use a specially configured securityContext and give the Pods enough time to terminate gracefully:

$ export INST_IMAGE=<insert the instrumented image name from the above output>

$ envsubst <  https://raw.githubusercontent.com/slim-ai/saas-examples-harden-kubernetes-deployment/main/kubernetes/app-instrumented.yaml | kubectl apply -f -

$ kubectl apply -f https://raw.githubusercontent.com/slim-ai/saas-examples-harden-kubernetes-deployment/main/kubernetes/redis.yaml

NOTE: This is required only for the deployment with instrumented image. Deployment with hardened image won’t need any extra permissions.

“Test" the deployment with instrumented image — the Slim process needs the container to be exercised in some way to trigger the Observations. In the case of this simple app, merely running a curl request against the running workload will suffice. In reality, integration tests in a test or staging environment are the most common.

$ kubectl port-forward deployment/app 8080:8080 &

$ curl localhost:8080

$ kill %1  # Stops port-forwarding

By running curl, we see that the Node web app returns a response. Under the hood, the Slim Sensor observes the running container and collects intelligence about the required libraries, files, and binaries.

Finally, Stop the Pod(s) gracefully to make the sensor(s) submit the reports back to Slim SaaS. Failure to stop the Pod(s) gracefully may result in a failed hardening process.

$ kubectl delete deployment app

Step 3: Harden 🔨

Now that we have the data via automatically submitted reports, we can harden the target image in Deployment, removing unnecessary components and thus reducing the overall vulnerability count and attack surface.

Harden using the ID obtained on the Instrument step:

$ slim harden --id <instrumentation attempt ID>

Step 4: Verify ✔

Redeploy the workload with the hardened image (notice that it doesn’t require any extra security context):

$ export HARD_IMAGE=<insert the hardened image name>

$ envsubst <  https://raw.githubusercontent.com/slim-ai/saas-examples-harden-kubernetes-deployment/main/kubernetes/app-hardened.yaml | kubectl apply -f -

$ kubectl apply -f https://raw.githubusercontent.com/slim-ai/saas-examples-harden-kubernetes-deployment/main/kubernetes/redis.yaml

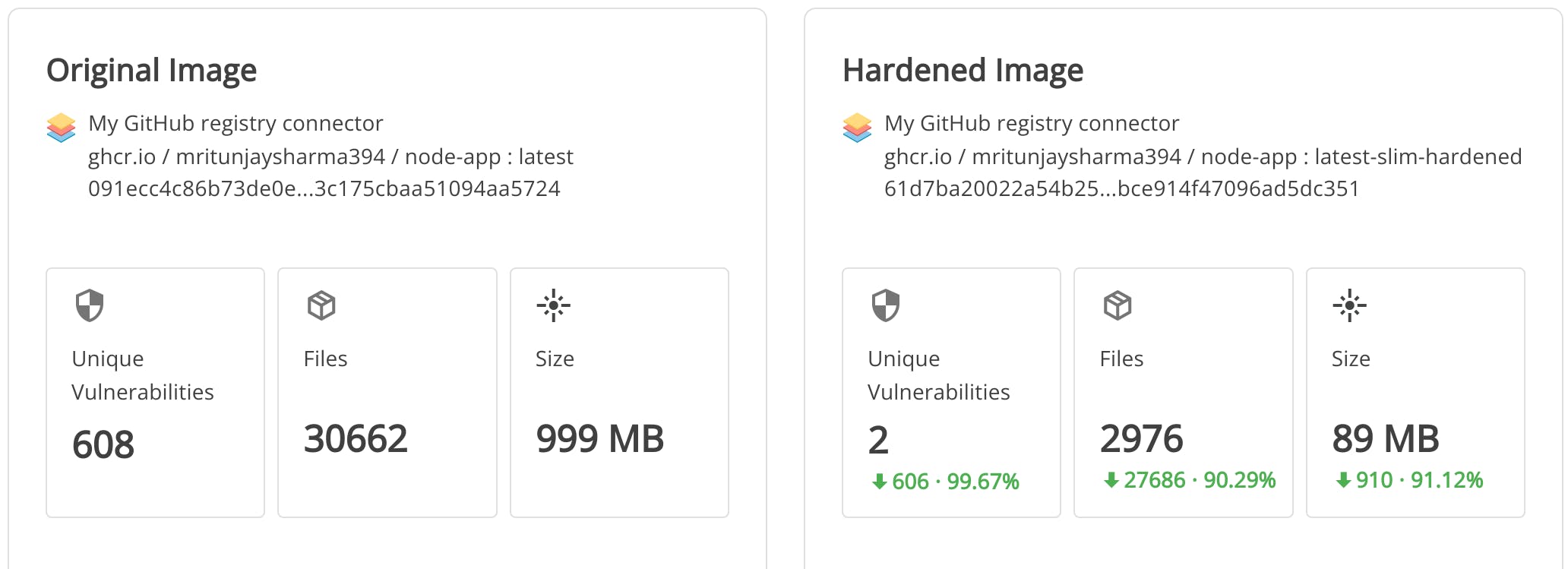

Verify that the hardened image works by re-running tests.

$ kubectl get pod -l app=app -o jsonpath={..spec.containers[].image}

$ kubectl port-forward deployment/app 8080:8080 &

$ curl localhost:8080

$ kill %1

Cleanup

$ kubectl delete deployment/app

Interested in learning more? Check out our Solutions page.
